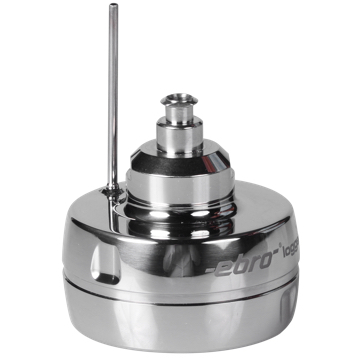

EBI 12TP231

highliy accurate data logger to measure temperature and pressure

Validation logger for thermal testing of processes with steam sterilizers and WD's. The logger is characterized by ist high accuracy and ease of use. Of course, this data logger can also be used for routine control in the RUMED.

Benefits:

· bendable metal probe

· high accuracy

· Realtime data transmission

· fast response time

· sterilizable data logger

Applications:

· Validation logger for Measurement in the steam sterilizer, WD and endoscope washer

技术参数

Data memory

2 x 33.440 measurement values

Sensor

Pt 1,000, class A

Weight

approx. 120 g

Accuracy

±0,1 °C (0 °C ... +120 °C) ±0,05 °C (+120 °C ... +140 °C) ±0,1 °C (+140 °C ... +150 °C)

±15 mbar (1 mbar ... 50 mbar), ±10 mbar (50 mbar … 150 mbar), ±10 mbar (2.050 mbar … 2.250 mbar),
±10 mbar (3.000 mbar … 3.250 mbar), ± 15 mbar (3.250 mbar ... 3.500 mbar),
± 0,5 % FS (3.500 mbar ... 4.000 mbar)

Protection class

IP68

Dimensions

(Ø x H) 48 mm x 32 mm - Needle length 40 mm

Resolution

Temperature 0,01 °C / pressure 1 mbar

Certificate

Factory Calibration: 0 °C, +60 °C and +134 °C 100 mbar and 3,100 mbar at +25 °C and 3,100 mbar at +134 °C

Measured variables

Temperature, pressure

Intervall

250 ms ... 24 h

Battery

Lithium 3.6 V battery exchangeable

Measuring range

0 °C … +150 °C 1 mbar … 4.000 mbar

Storage temperature

-20 °C ... +70 °C
