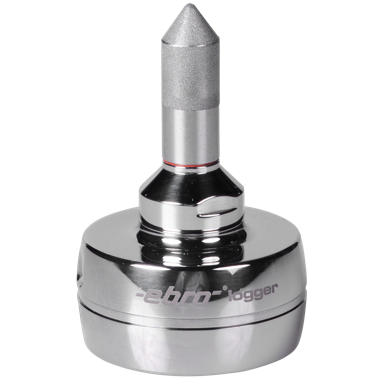

EBI 12TH100

Humidity sensor easy to change

This data logger is for measuring the relative humidity during processing with ethylene oxide. It can be used in hazardous areas.

Benefits:

· high accuracy

· robust data logger

Applications:

· Sterilization with ethylene oxide gas (EO)

技术参数

Data memory

2 x 50,160 measurement values

Weight

aprox. 120 g

Accuracy

±2% (10%rH to 90%rH at 25°C non condensate), remaining range ±7%

Protection class

IP52

Dimensions

ø 48 mm x 70 mm

Resolution

0,01 °C 0,1 % rF

Certificate

Factory Calibration: 0 °C and +60 °C 32.8 %rF, 52.9 %rF and 75.4 %rF at 25 °C

Measured variables

Temperature, humidity

Battery

3.6 V lithium battery exchangeable

Measuring range

Temperature: -20 °C ... +85 °C Humidity: 0 % rF… 100 % rF

Storage temperature

-20 °C ... +70 °C
