Product Description

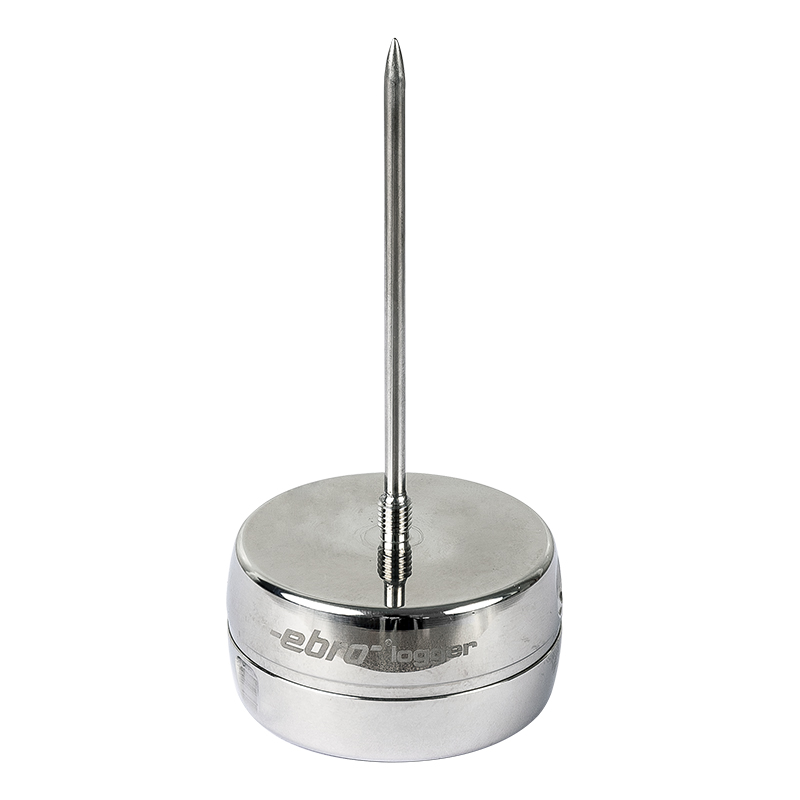

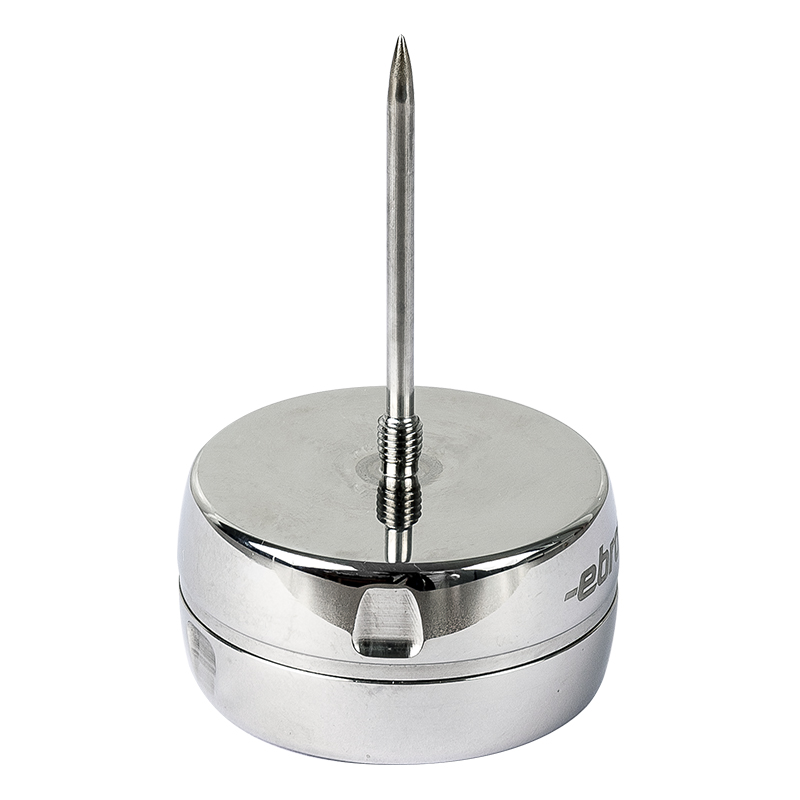

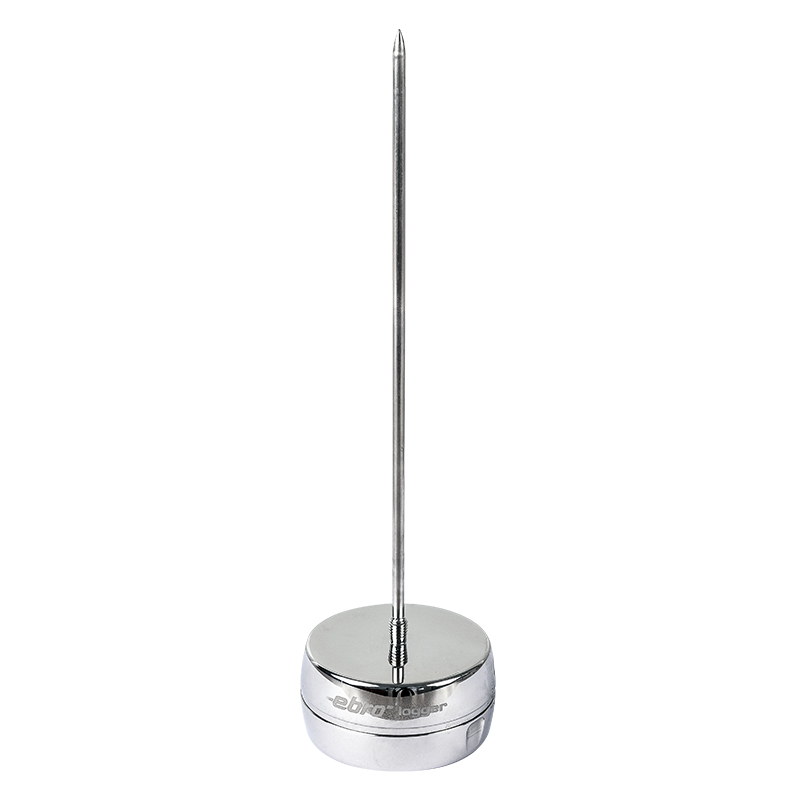

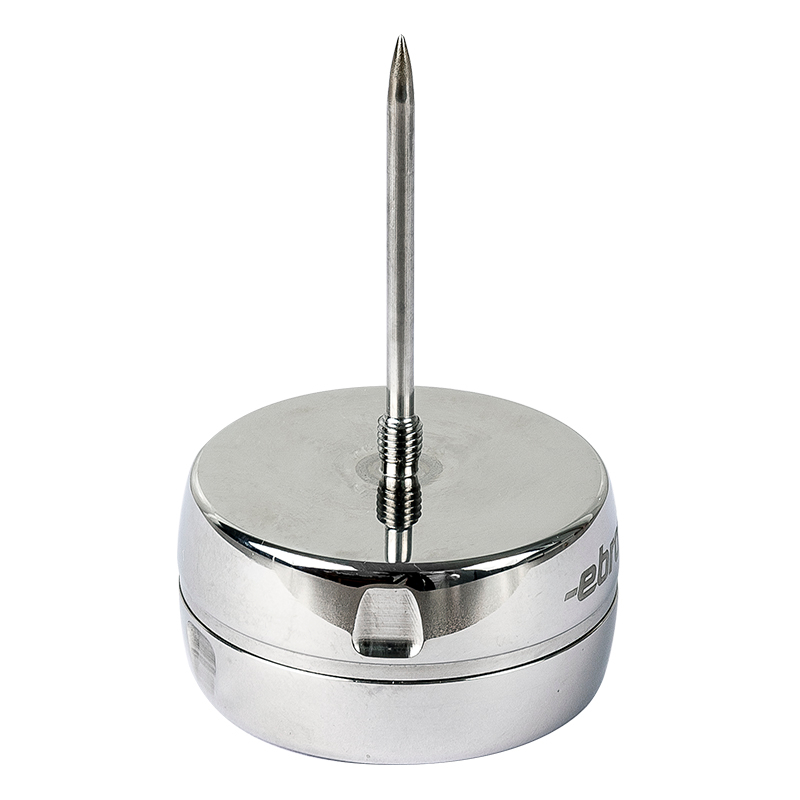

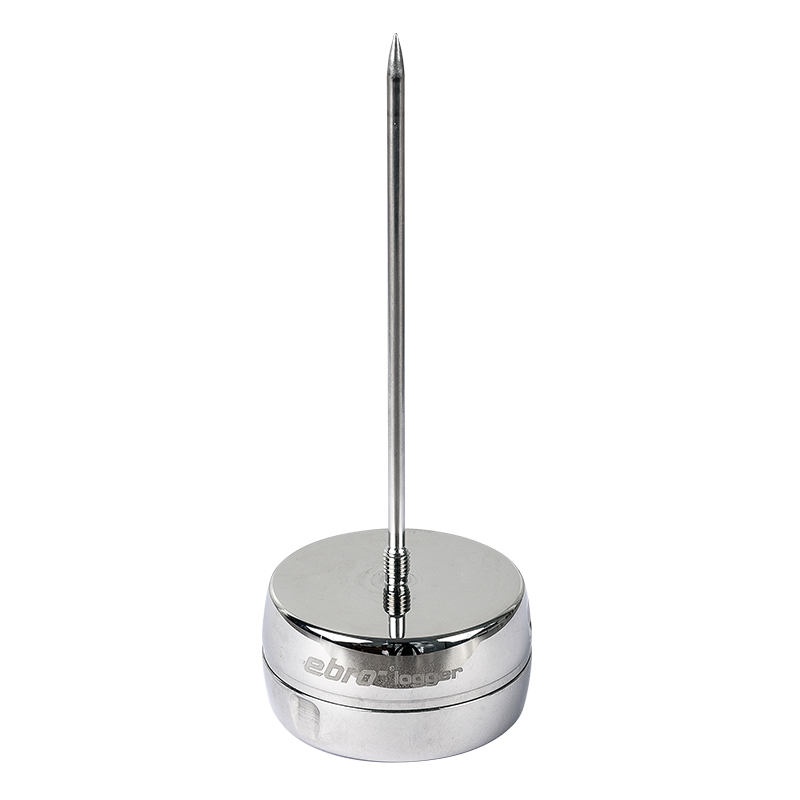

The data logger is used for pasteurization control, especially in cans or jars. The sensor needle is inserted from the outside into the respective Converve and fixed.
Wireless Measurement
Versatile
Large Measuring Range
Robust Data Logger
Food Safety
Pasteurization Control
PU value determination
F0 Value calculation
Sterilisation
Product Parameters
| Data memory | 100,000 measurement values |
| Sensor | Pt 1,000, class A |
| Weight | approx. 110 g |
| Accuracy | ± 0,05 °C (-90 °C … -40 °C) ± 0,05 °C (-40 °C … 0 °C) |
| Protection class | IP68 |
| Dimensions | (Ø x H) 48 mm x 24 mm |
| Resolution | 0,01 °C |
| Certificate | Factory Calibration: -20 °C, 0 °C, +60 °C and +134 °C |
| Measured variables | Temperature |
| Intervall | 250 ms ... 24 h |
| Battery | Lithium battery (3,6 V), user replaceable |
| Measuring range | -90 °C ... +150 °C |
| Storage temperature | -20 °C ... +70 °C |
