Product Description

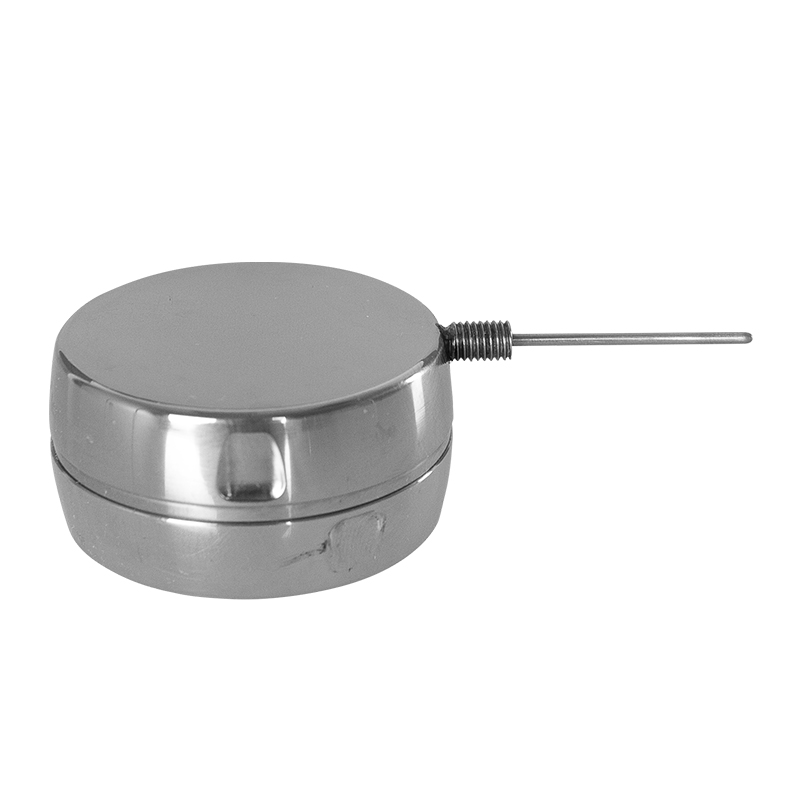

This logger is to be placed in machines for measurement.
The temperature data logger is used for thermal measurement during validation, but also for routine checks and the final test after maintenance has been carried out.
Fast Response Time
Wireless Measurement
Versatile
Validation logger for temperature measurement in the steam sterilizer, WD and endoscope washer
A0 Value calculation
F0 Value calculation
Qualification of warehouses and refrigeration equipment
Product Parameters
| Data memory | 100,000 measurement values |
| Sensor | Pt 1,000, class A |
| Weight | approx. 110 g |
| Accuracy | ± 0,05 °C (-90 °C … -40 °C) ± 0,05 °C (-40 °C … 150 °C) |
| Protection class | IP68 |
| Dimensions | (Ø x H) 48 mm x 24 mm |
| Resolution | 0,01 °C |
| Certificate | Factory Calibration: -20 °C, 0 °C, +60 °C and +134 °C |
| Measured variables | Temperature |
| Intervall | 250 ms ... 24 h |
| Battery | Lithium battery (3,6 V), user replaceable |
| Measuring range | -90 °C ... +150 °C |
| Storage temperature | -20 °C ... +70 °C |
