Product Description

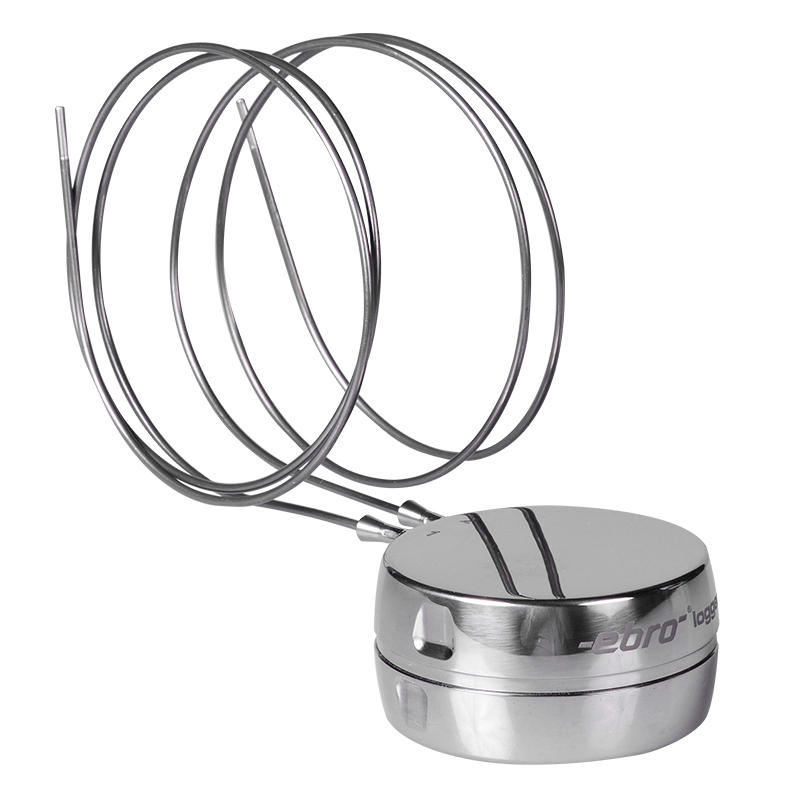

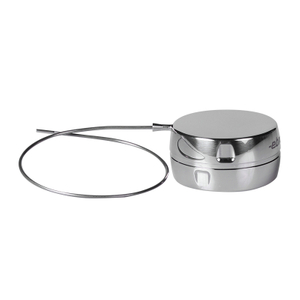

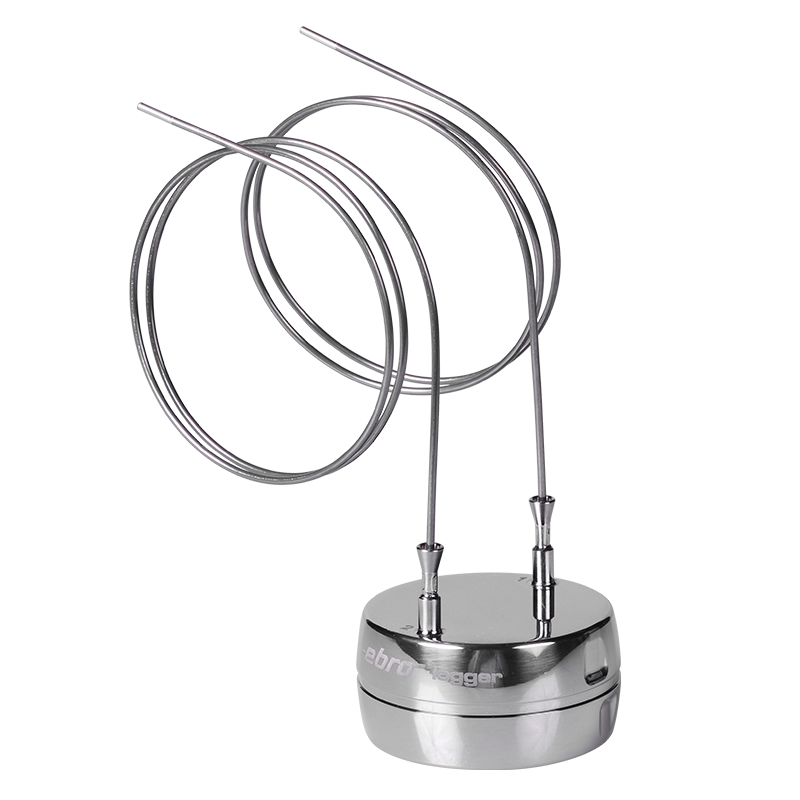

This data logger is often used for thermal measurement during validation. Its two 500 mm long bendable metal probes offer maximum flexibility in the placement of the temperature probes. Due to its extended measurement range, the logger can also be used for quality control during roasting processes. To ensure that the logger is not damaged by the high temperatures, it must be protected from the effects of temperatures above +150 °C. The logger can be used in a variety of applications. For this purpose, you will find the TIB2 temperature protection box in the accessories.
Large Measuring Range
Bendable Metal Probe
High Accuracy
Realtime Data Transmission
Wireless Measurement
Validation logger for temperature measurement in the steam sterilizer, WD and endoscope washer
Validation in the hot air sterilizer
Validation of baking processes
Product Parameters
| Data memory | 2 x 50,160 measurement values |
| Sensor | Pt 1,000, class A |
| Weight | approx. 110 g |
| Accuracy | ± 0,5 °C (-200 °C … -90 °C) ± 0.5 °C (-90 °C … -40 °C) ± 0.2 °C (-40 °C … 0 °C) ± 0.05 °C (0 °C … +120 °C) ± 0.05 °C (+120 °C … +140 °C) ± 0.1 °C (+140 °C … +150 °C) ± 0.5 °C (+150 °C … +250 °C) ± 0.5 °C (+250 °C … +400 °C) |
| Protection class | IP68 |
| Dimensions | (Ø x H) 48 mm x 24 mm - Needle length 500 mm |
| Resolution | 0,01 °C |
| Certificate | Factory Calibration: -20 °C, 0 °C, +60 °C, +134 °C and +250 °C |
| Measured variables | Temperature |
| Intervall | 250 msec ... 24 h |
| Measuring range | -200 °C ... +400 °C |
| Storage temperature | -20 °C ... +70 °C |
