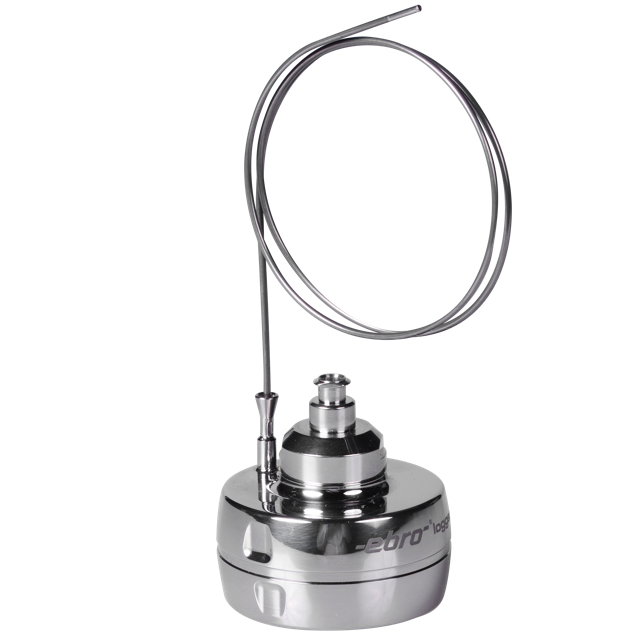

EBI 12TP222

Easy to place the bendable metal probe for temperature measurement

Validation logger for thermal testing of processes with steam sterilizers. The logger is characterized by its bendable metal probes. The very thin temperature sensors with a diameter of 1.5 mm at the sensor tip enable a very fast response time. With this logger and the AL 126 Endoscope Flow Control Adapter, regular routine checks in RDG-E are easy to perform.

Benefits:

· bendable metal probe

· high accuracy

· Realtime data transmission

· fast response time

· sterilizable data logger

Applications:

· Validation logger for Measurement in the steam sterilizer, WD and endoscope washer

技术参数

Data memory

2 x 33.440 measurement values

Weight

approx. 120 g

Accuracy

±15 mbar (1 mbar ... 49 mbar) ±10 mbar (50 mbar … 150 mbar) ±15 mbar (151 mbar ... 2.049 mbar) ±10 mbar (2.050 mbar … 2.250 mbar) ±15 mbar (2.251 mbar ... 2.999 mbar) ±10 mbar (3.000 mbar … 3.250 mbar) ±15 mbar (3.251 mbar ... 3.499 mbar) ±20 mbar (3.500 mbar ... 4.000 mbar)

Protection class

IP68

Dimensions

ø 48 mm x 32 mm

Resolution

0,01 °C 1 mbar

Certificate

Factory calibration: 0 °C, +60 °C and +134 °C 100 mbar and 3,100 mbar at +25 °C and 3,100 mbar at +134 °C

Measured variables

Temperature, pressure

Intervall

250 ms ... 24 h

Battery

3.6 V lithium battery exchangeable

Measuring range

Temperature: 0 °C … +150 °C Pressure : 1 … 4.000 mbar

Storage temperature

-20 °C ... +70 °C
