Product Description

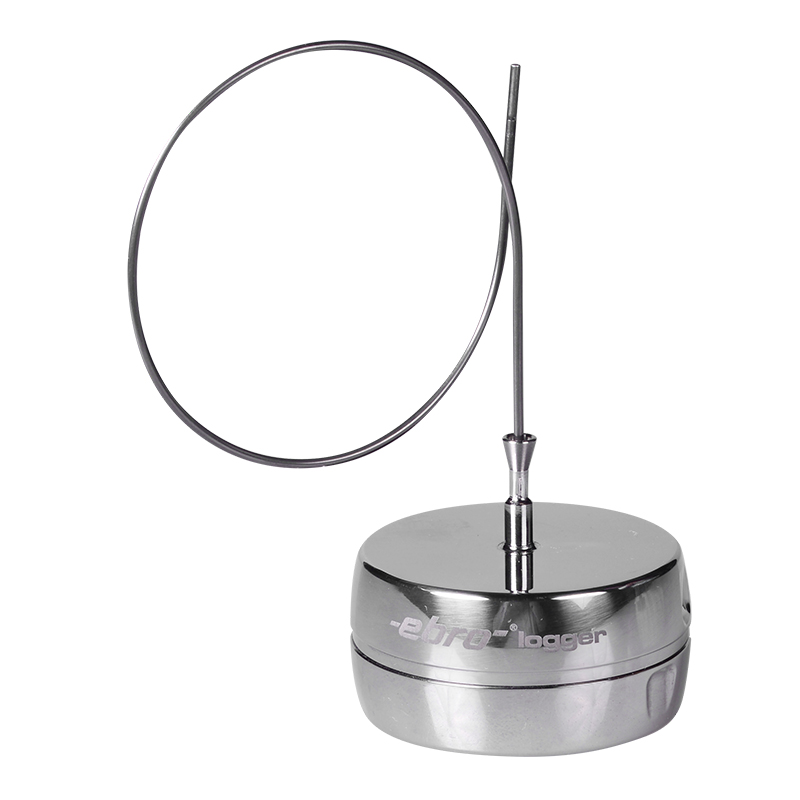

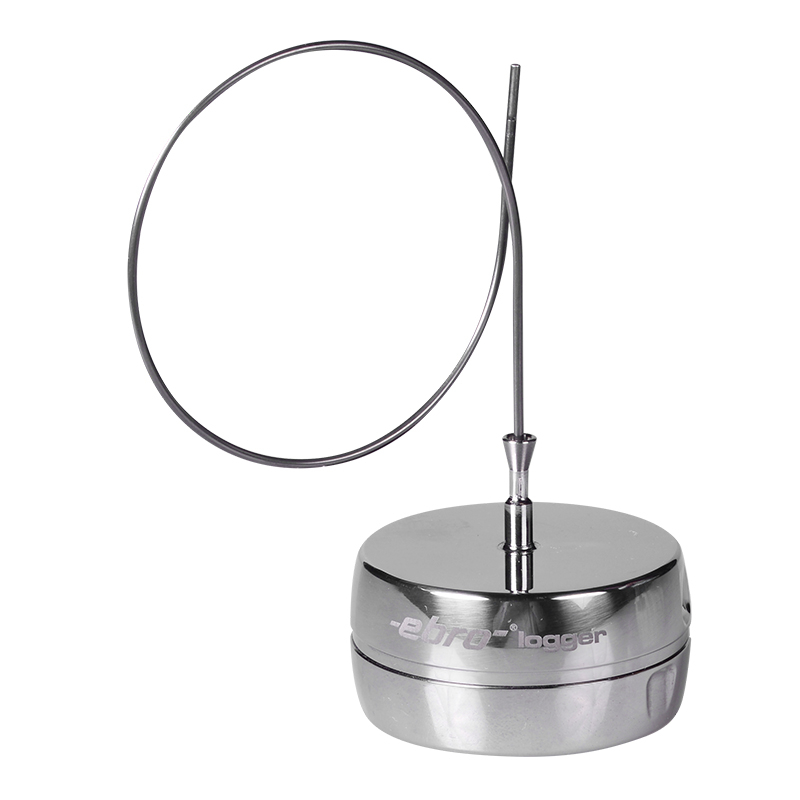

This validation logger is ideal for measurements on the product. With its flexible metal sensor, the sensor can also be inserted into a hollow body.
Bendable Metal Probe
Large Measuring Range
Realtime Data Transmission
Wireless Measurement
Sterilizable Data Logger
Validation logger for temperature measurement in the steam sterilizer, WD and endoscope washer
A0 Value calculation
F0 Value calculation
Product Parameters
| Data memory | 100,000 measurement values |
| Sensor | Pt 1,000, class A |
| Weight | approx. 110 g |
| Accuracy | ± 0,05 °C (-90 °C … -40 °C) ± 0,05 °C (-40 °C … 150 °C) |
| Protection class | IP68 |
| Dimensions | (Ø x H) 48 mm x 24 mm |
| Resolution | 0,01 °C |
| Certificate | Factory Calibration: -20 °C, 0 °C, +60 °C and +134 °C |
| Measured variables | Temperature |
| Intervall | 250 ms ... 24 h |
| Battery | Lithium battery (3,6 V), user replaceable |
| Measuring range | -90 °C ... +150 °C |
| Storage temperature | -20 °C ... +70 °C |
