Product Description

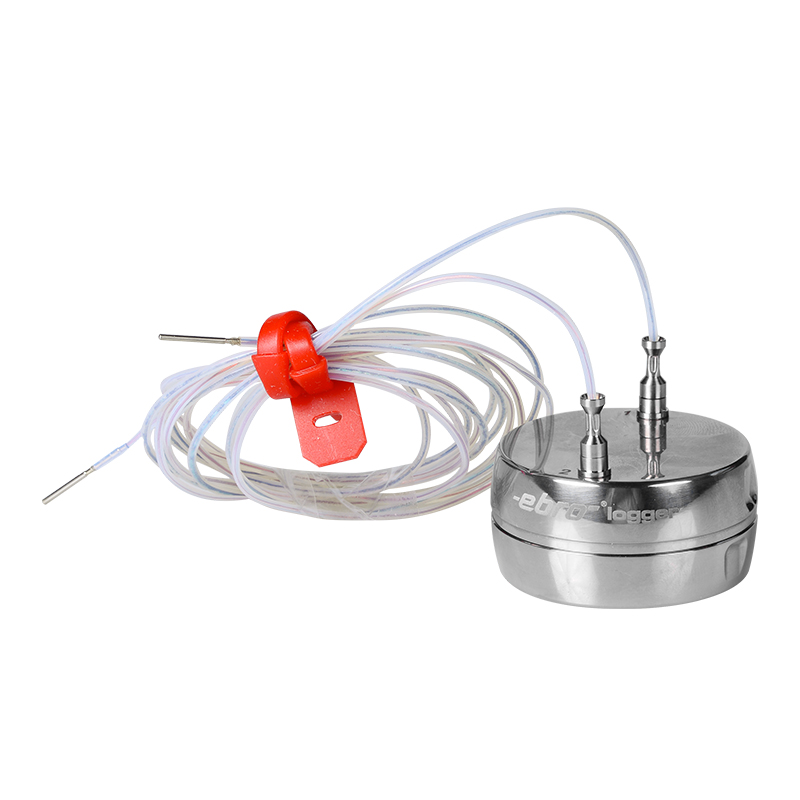

Validation logger for thermal testing of processes with steam sterilizers. The logger is characterized by its highly flexible cable probes, which enable precise positioning. When using the logger in the WD, it is strongly recommended to fix the probes by means of silicone cable ties. The very thin temperature sensors with a diameter of 1.2 mm at the sensor tip enable a very fast response time.
Highly Flexible Cable Probes
High Accuracy
Realtime Data Transmission
Fast Response Time
Sterilizable Data Logger
Validation logger for temperature measurement in the steam sterilizer
Product Parameters
| Data memory | 100,000 measurement values |
| Sensor | Pt 1,000, class A |
| Weight | approx. 110 g |
| Accuracy | ± 0,05 °C (-90 °C … -40 °C) ± 0,05 °C (-40 °C … 150 °C) |
| Protection class | IP68 |
| Dimensions | (Ø x H) 48 mm x 24 mm |
| Resolution | 0,01 °C |
| Certificate | Factory Calibration: -20 °C, 0 °C, +60 °C and +134 °C |
| Measured variables | Temperature |
| Intervall | 250 ms ... 24 h |
| Battery | Lithium battery (3,6 V), user replaceable |
| Measuring range | -90 °C ... +150 °C |
| Storage temperature | -20 °C ... +70 °C |
