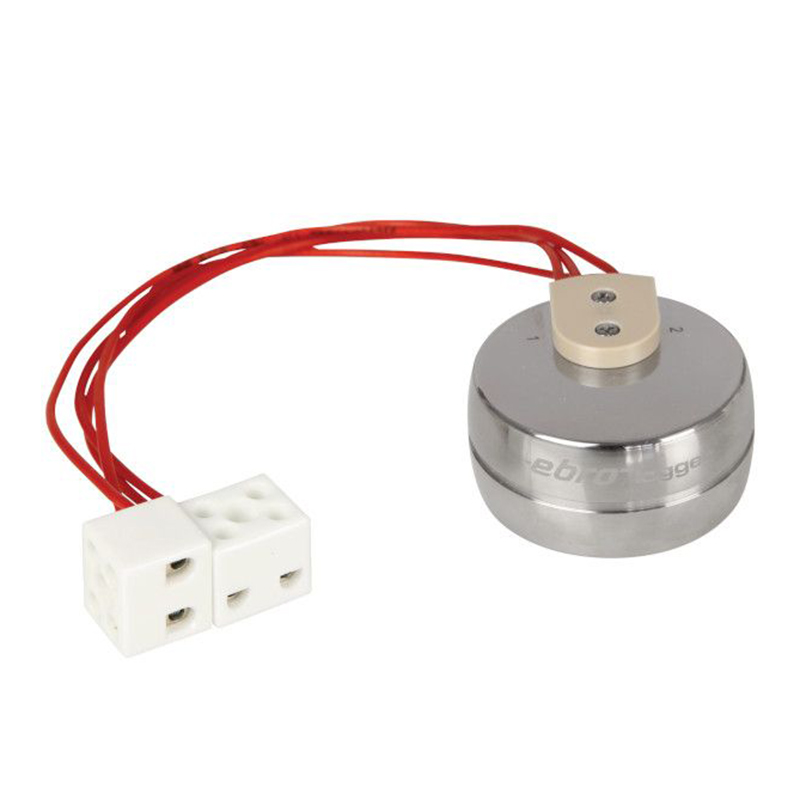

Product Description
Data logger for measurement in production processes. The logger is characterized by the possibility to change the sensor quickly. Especially during development or troubleshooting, it can be advantageous to place the temperature sensor precisely on a component and to fix it there in a non-detachable way. With this data logger data can be collected quickly.
Large Measuring Range
Robust Data Logger
High Accuracy
Realtime Data Transmission
Fast Response Time
Analysis of industrial production processes
Quality assurance
Product Parameters
| Data memory | 100,000 measurement values |
| Sensor | Pt 1,000, class A |
| Weight | approx. 110 g |
| Accuracy | ± 0,05 °C (-90 °C … -40 °C) ± 0,05 °C (-40 °C … 150 °C) |
| Protection class | IP68 |
| Dimensions | (Ø x H) 48 mm x 24 mm |
| Resolution | 0,01 °C |
| Certificate | Factory Calibration: -20 °C, 0 °C, +60 °C and +134 °C |
| Measured variables | Temperature |
| Intervall | 250 ms ... 24 h |
| Battery | Lithium battery (3,6 V), user replaceable |
| Measuring range | -90 °C ... +150 °C |
| Storage temperature | -20 °C ... +70 °C |
