Product Description

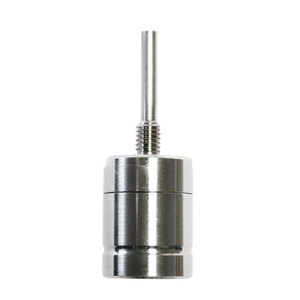

The EBI 11-T235 validation logger was specially developed for the validation of reprocessing of medical devices in the tertiary sector. It is adapted to the validation concept for the Sirona DAC Universal and Melag Careclave units.
In addition to being used in doctors surgeries, the logger can also be used to measure the temperature in the endoscope dummy. The needle length is precisely matched to the AL 126 adapter.
Simple And Repeatable Placement
Wireless Measurement
Small Size
High Accuracy
Validation At Doctors Surgeries
Process Validation With Dac Universal
Process Validation With Careclave
Process Validation With Endoscope-Dummy,
Spypach Process Validation
Process Validation
Product Parameters
| Data memory | 15.000 measurement value |
| Sensor | Pt 1000 |
| Weight | ca. 45 g |
| Accuracy | ±0.1°C |
| Protection class | IP68 |
| Dimensions | ø 16.5 x 24 mm (without probe) - Needle length 100 mm |
| Resolution | 0.01°C |
| Certificate | Factory Calibration: 0 °C, +60 °C and +134 °C |
| Measured variables | temperature |
| Intervall | 1s...24h |
| Battery | Battery 2 x 3 V |
| Measuring range | -30 °C...+150 °C |
| Storage temperature | -20 °C...+70 °C |
