EBI 11P100

  • Small Size
  • Large Measuring Range
  • Wireless Measurement
  • Connectable To Luerlock
  • High Accuracy
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Product Description

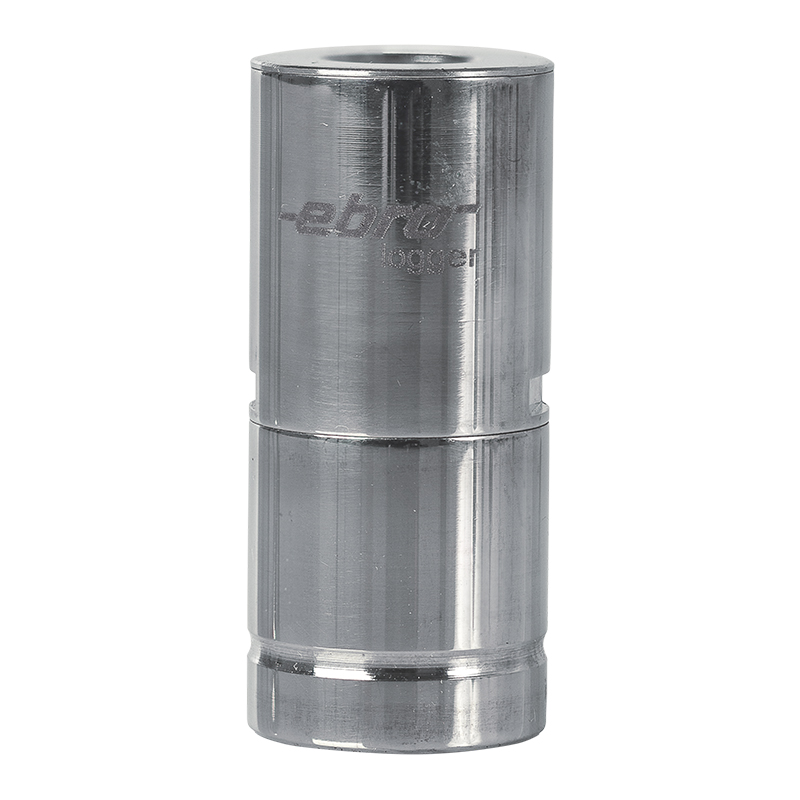

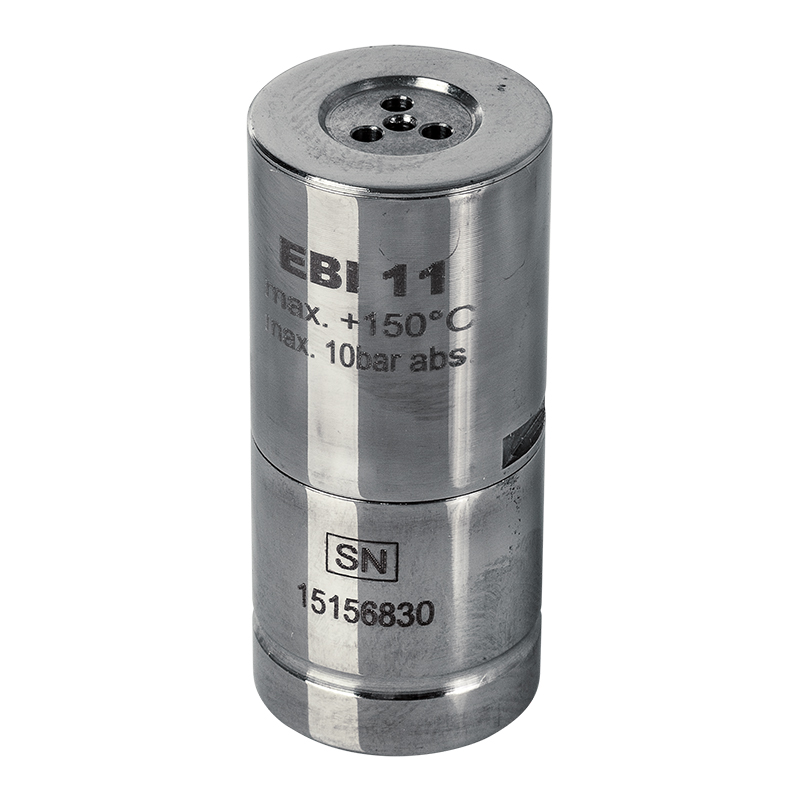

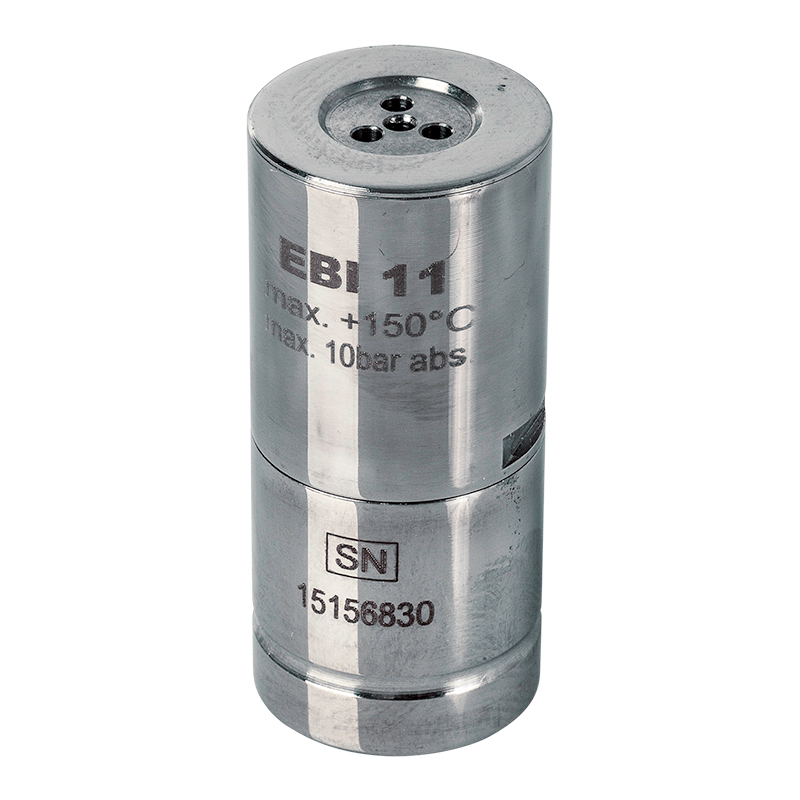

Mini validation pressure data logger to messure in steam sterilizers and Washer disinfectors.

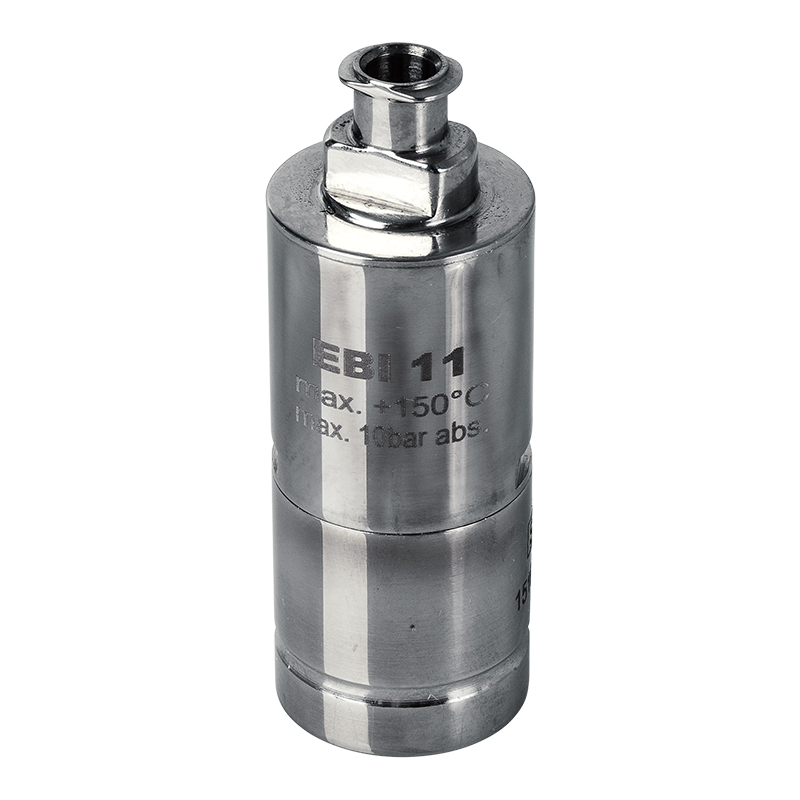

Miniature pressure data logger for measuring the temperature-compensated absolute pressure during validation with small sterilizers and cassette autoclaves. The data logger can also be used in RDGs as well as in the Sirona DAC Universal and Melag Careclave. With its Luer lock connection, it can be used universally.

Benefits:

  • Small Size

  • Large Measuring Range

  • Wireless Measurement

  • Connectable To Luerlock

  • High Accuracy

Applications:

  • Process Validation With Dac Universal

  • Process Validation With Careclave

  • Process Validation With Endoscope-Dummy, Spypach

  • F0 Value Calculation


Product Parameters

Data memory 2 x 7.500 measurement values
Sensor Pt 1000
Weight Approx. 45 g
Accuracy ± 15 mbar (0 mbar...4000 mbar ) ± 20 mbar (4000 mbar...10000 mbar)
Protection class IP68
Dimensions ø 16,5 mm x 47 mm
Resolution 1 mbar
Certificate Factory calibration certificate
Measured variables Pressure
Intervall 1s...24h
Battery 2 x 3V
Measuring range 1 mbar...10.000 mbar
Storage temperature -20 °C...+70 °C
