Product Description

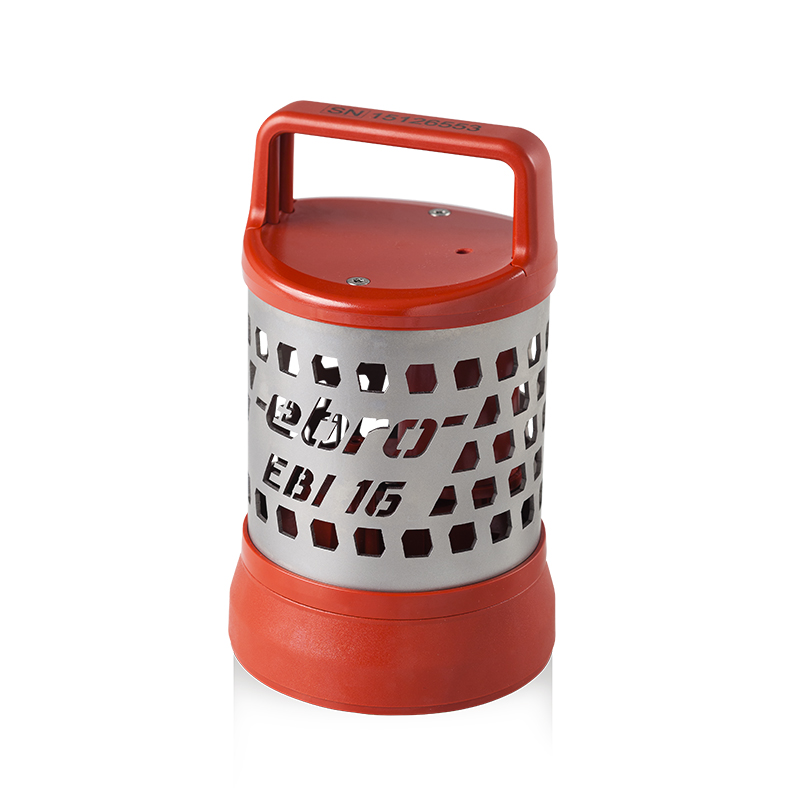

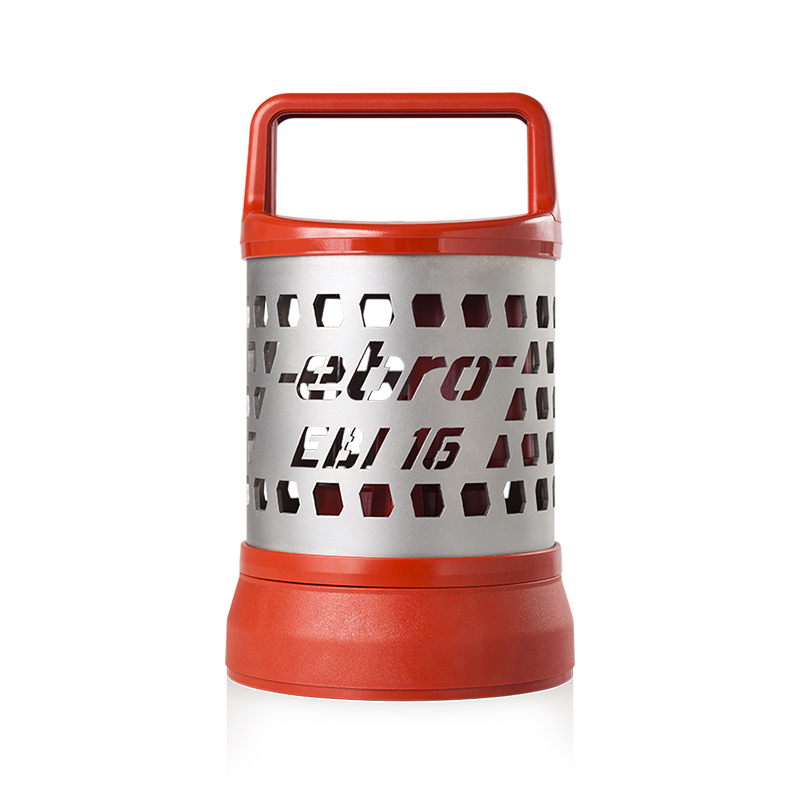

The EBI 16 forms together with the evaluation software Winlog.med an easy to use and reliable electronic measurement system. This allows implementing a comprehensive routine control of steam sterilizers by means of the alternative Bowie&Dick-Test according to EN 285 / DIN EN ISO 17665. In addition to checking the penetration of steam, the relevant sterilization parameters are also checked. A vacuum test can also be carried out with this device. The EBI 16 is designed to ensure the use of 1,000 cycles or 3 years without calibration or service.
Reliable: clear, reproducible measurement results
Accurate: high-resolution graphical cycle display
Secure: digital data recording and storage
Easy: to use and evaluate
daily BD Test in the RUMED
patient safety

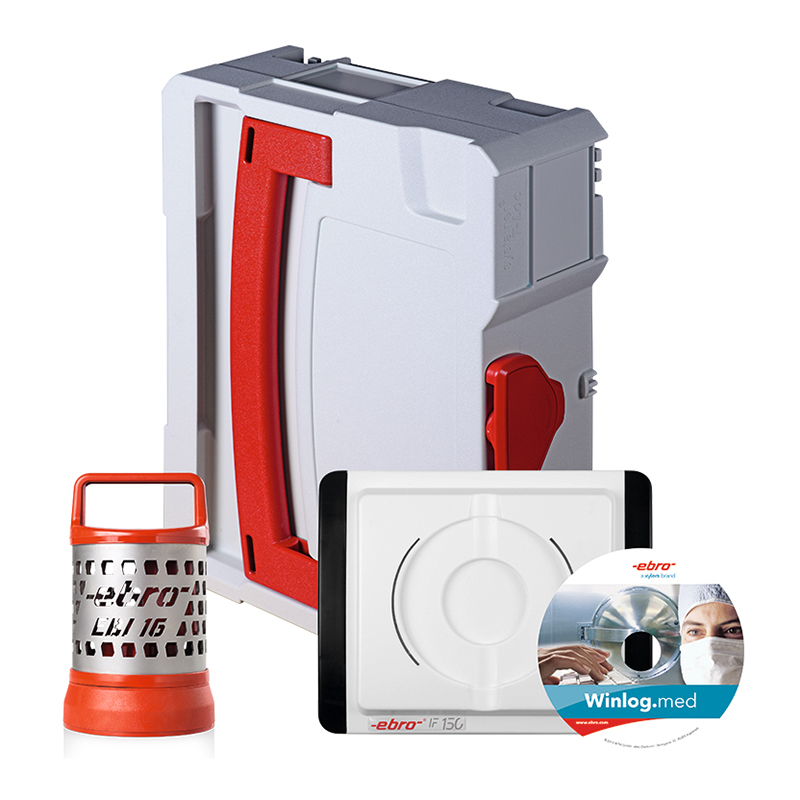

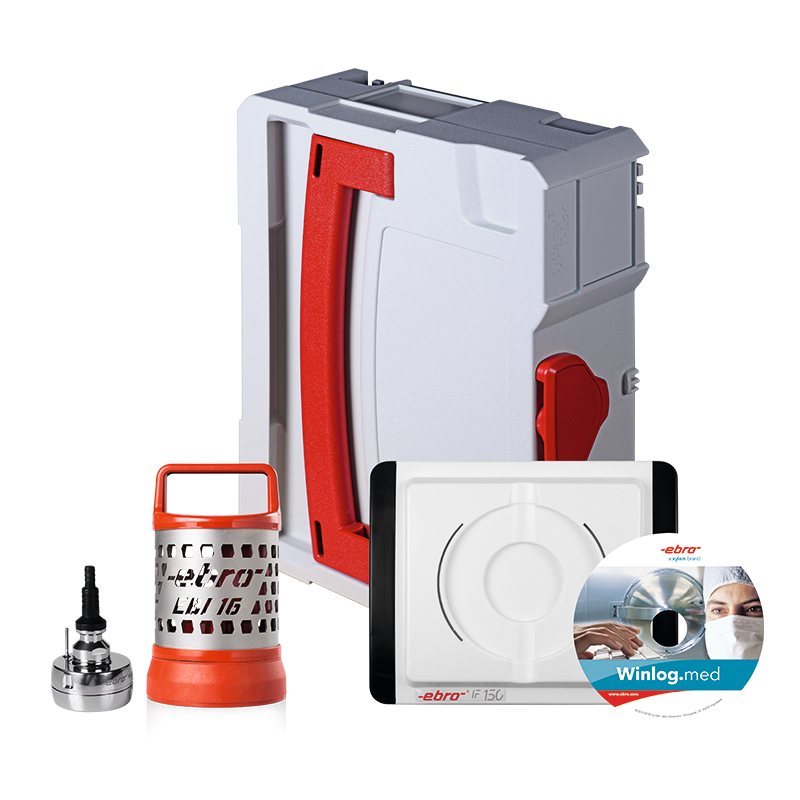

To analyse the measurement data, you need the SL 1521 EBI 16 Bowie&Dick Logger-Set
Product Parameters
| Data memory | 6,960 measurement values |
| Sensor | Pt 1,000, piezoresistive pressure sensor |
| Weight | aprox, 500 g |
| Accuracy | ± 0.1°C, ± 15 mbar |
| Protection class | IP68 |
| Dimensions | 90 mm x 150 mm |
| Resolution | 0.01°C, 1 mbar |
| Certificate | Factory calibration certificate |
| Measured variables | Temperature, pressure |
| Intervall | 1 s |
| Battery | Lithium cell (3,6 V), replaceable |
| Measuring range | 0 °C ... +150 °C, 1 mbar ... 4.000 mbar |
| Storage temperature | -20 °C … +70 °C |
